Aerial Work Platform

Aerial Work Platform is very suitable for its easy operation. Our range of products are quality is assured on the parameters of durability, maintenance, construction and safety. These are available in various specifications for our esteemed clients as per their requirement. These are manufactured from quality raw material and sophisticated technology, these are light in weight. These are available at cost effective price.

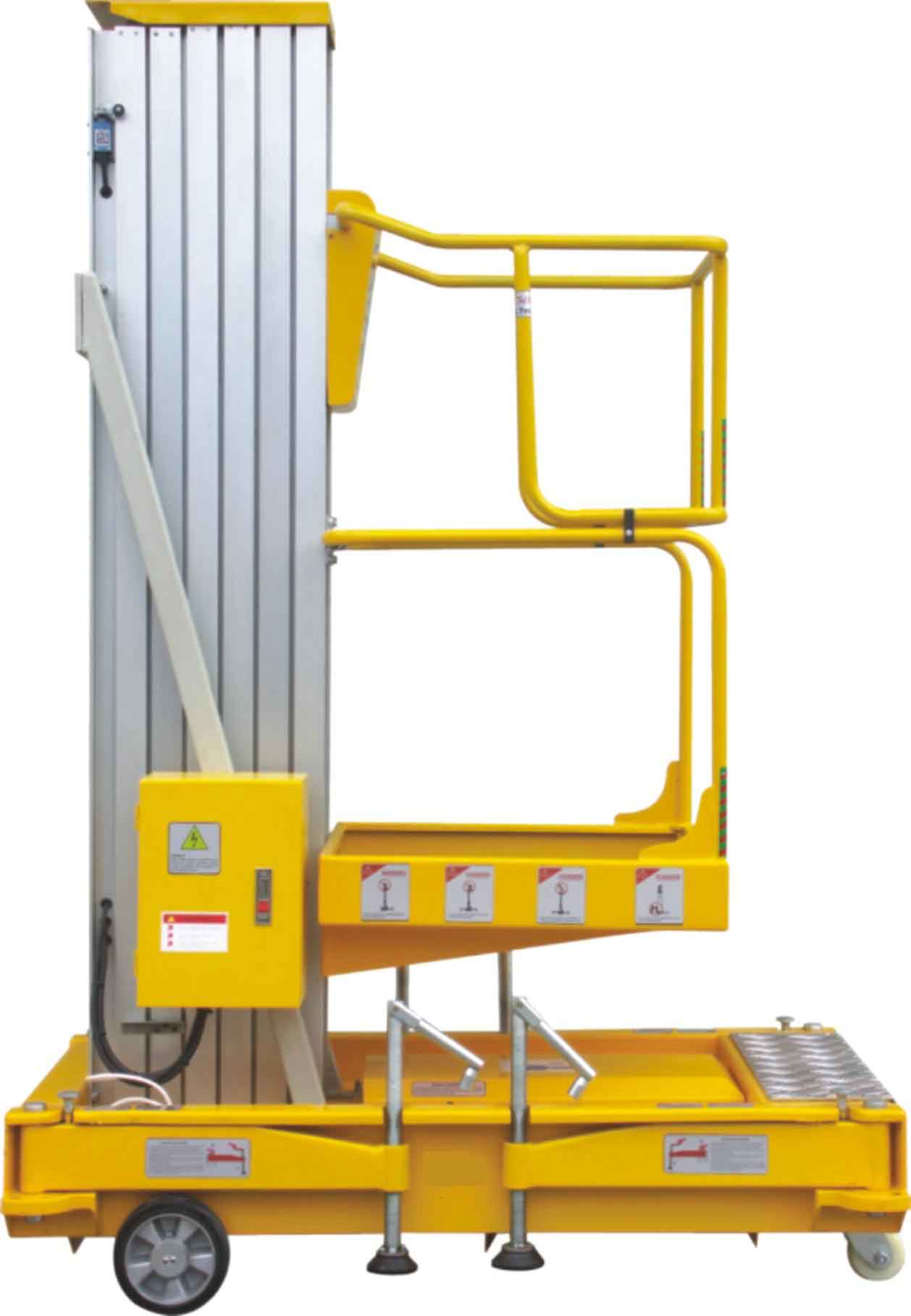

Single Mast Aerial Work Platform

Aerial Work Platform (Single Mast) is easy to operate and which can be customized as per the requirements of the customers. These equipments take less maintenance cost and very easy to install. These machines are appreciated for their high quality and exclusive usage. These are easily available in the market as per international quality standards. They are checked on a regular basis and that are used in different industrial applications.

Model No.   HK/AWP10.1
Lifting Height mm 10000
Rated Capacity Kg 125
Platform Size mm 630x640
Power Source V 220~240
Motor Power kw 0.75
Outer Dimension mm 1420x840x2120
Net Weight Kg 432


Features :
  • Suit for one person to work upraised
  • With 125KG rated capacity
  • Maximum platform height (optional) :6m;8m;10m
  • Power supply:Optional single phase AC(default) , DC
  • Heavy-duty Aluminium Mast
  • Equipped with Emergency Stop
  • Free-maintenance battery
  • Lifting and lowering are controlled well by Hydraulic system
  • Buttons inside of the controlling box are imported from U.S.A
  • Conforms to EN292-1,EN292-2,En280



Double Mast Aerial Work Platform

We manufacture and supply double mast aerial work platform which is suitable for operation by 1-2 people. It is fabricated using prime quality raw material and the mast is made up of heavy duty aluminum. Our double mast aerial work platform is equipped with a hydraulic system. We import the buttons of the controlling box to ensure their superior quality.

Model No.   HK/AWP10.2000
Lifting Height mm 10000
Rated Capacity Kg 300
Platform Size mm 1440x600
Power Source V 220~240
Motor Power kw 0.75
Outer Dimension mm 1750x840x1900
Net Weight Kg 728


Features :
  • Suit for 1-2 person to work upraised
  • With 300KG rated capacity
  • Maximum platform height (optional) :6m;8m;10m;12m
  • Power supply:Optional single phase AC(default) , DC
  • Heavy-duty Aluminium Mast
  • Equipped with an Emergency Stop
  • Free-maintenance Battery
  • Lifting and lowering are controlled well by Hydraulic system
  • Buttons inside of the controlling box are imported from U.S.A.
  • Conforms to EN292-1,EN292-2,En280
